The 5MP Ultra HD Metal Security Camera delivers detailed 2560 × 1920 video when connected to a compatible 5MP DVR, making it a practical choice for upgrading or expanding an existing wired surveillance system. Its hybrid 4-in-1 design supports TVI, CVI, AHD, and CVBS video formats, while the built-in OSD switch makes it easy to change the camera's output mode to match a variety of compatible DVR systems.
Designed for both indoor and outdoor surveillance, the camera features a heavy-duty metal IP66 weather-resistant housing. A 4mm fixed lens provides a focused viewing area, while 36 infrared LEDs and an IR-cut filter deliver night vision up to 100 feet (30 meters) in low-light and nighttime conditions.
The camera connects directly to a compatible DVR through a standard BNC coaxial video connection. When paired with a compatible 5MP DVR, it delivers full 5MP resolution; it can also be configured for use with certain lower-resolution DVR systems by selecting the appropriate video mode through the OSD switch.
Package includes one wired 5MP security camera, three mounting screws, and a quick start guide. The camera requires a DC 12V 1A power source. Power supply and coaxial video cable are sold separately.
Returns will be accepted for up to 30 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.
Core Product Advantages
Heavy-Duty and Weatherproof
TIGERSECU’s heavy-duty metal IP66 cameras can be mounted indoors and outdoors and are built tough to withstand rain, snow, and the elements.
Crystal Clear 5 Megapixels
Clearly distinguish people, objects and actions with this HD 5MP camera capable of generating 2560 x 1920 pixels (5.0 megapixels) video.
Built-in 4.0mm Lens
See 72-degrees horizontally and clearly distinguish people at a distance of 20 feet with built-in 4.0mm lens. Ideal for yards, driveways, parking.
See in the Dark
See in the dark up to 100 feet (30 meters) with powerful infrared night vision which automatically kicks in as night falls.
Frequently Asked Questions
This TIGERSECU camera works with HD-TVI, AHD, CVI, and CVBS 960H D1 analog DVRs. Use the nifty switch to easily change the camera’s mode to match your DVR. Contact TIGERSECU at [email protected] with your DVR’s brand and model, and we can find out whether it’ll work.
We recommend using a 12V 1A power supply to power up each camera. The power interface is DC 5.5 x2.1 mm. Insufficient power can result in distorted or blacked-out images, or video loss.
This is a hard-wired camera that can be connected it to your DVR using a BNC video cable. Contact TIGERSECU at [email protected] if you need a hand with installation.

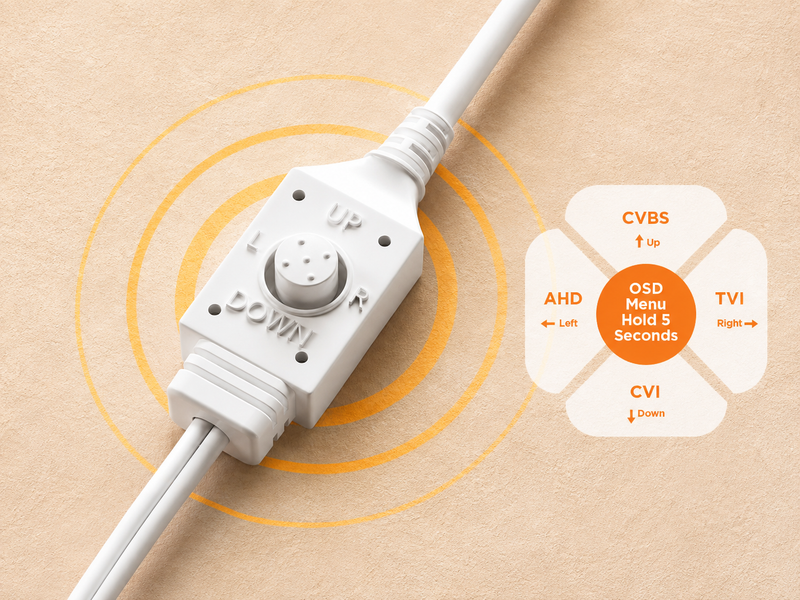

A black-and-white image can appear on CVI DVRs. Correct the image color by switching the camera to CVI video mode (be sure to press the camera’s OSD switch towards CVI-mode for 5 seconds). Contact TIGERSECU’s Help Desk if you need a hand.
This is a hard-wired camera that can be connected it to your DVR using a BNC video cable. Contact TIGERSECU at [email protected] if you need a hand with installation.
