The Super HD 1080P Bullet Security Camera delivers clear 1920 × 1080 (2MP) video for upgrading or expanding a compatible wired surveillance system. Its hybrid 4-in-1 design supports HD-TVI, AHD, CVI, and CVBS video formats, and the integrated OSD switch allows you to select the appropriate output mode for your compatible DVR.
The built-in 3.6mm fixed lens provides a 72° viewing angle for focused surveillance coverage. A reliable BNC wired connection provides stable video transmission without requiring a wireless network connection.

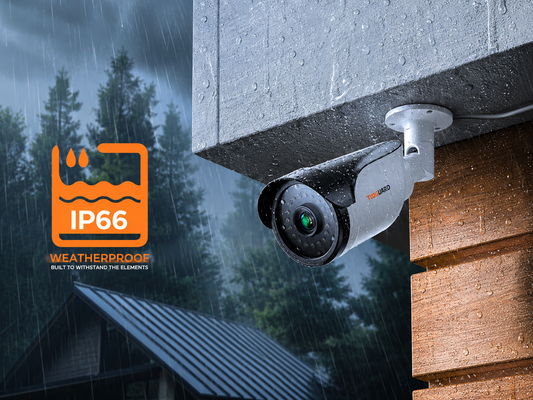

Designed for both indoor and outdoor use, the camera features a durable IP66 weather-resistant metal housing and infrared night vision up to 65 feet (20 meters). IR-cut technology automatically switches between color daytime video and black-and-white night vision as lighting conditions change.
The camera works with compatible 1080P and 5MP security DVRs and supports TVI, AHD, CVI, and CVBS video formats. For certain older 720P or D1 systems, use the integrated camera switch to select CVBS mode at 944 × 480 resolution.
Package includes one wired 1080P bullet security camera, three mounting screws, and a quick start guide. The camera requires a DC 12V 1A power source with a 5.5 × 2.1 mm power interface. Power supply and coaxial video cable are sold separately.
DVR/NVR 2 years; hard drives, cameras, cables, power supplies, remote controls and other accessories 1 year; Terms apply.
Core Product Advantages
Crystal Clear HD 1080p
Capture clear people, objects, and actions with this HD 1080p camera generating 2.0 MP video.
Hybrid 4-in-1 Camera OSD Switch
2MP camera switches between HD-TVI, AHD, CVI, CVBS 960H D1, to work with diverse DVR brands.
Capture Details of Home
The 3.6mm lens offers a 72° field of view, ideal for patios, driveways, and parking lots.
IR Night Version
See up to 65 feet in the dark with powerful infrared night vision that activates at nightfall.
Tech Specs
Connection Type
Image Sensor
Resolution
Lens
Viewing
Viewing Distance
Video Format
OSD/UTC
Day/Night Mode
Power Source
Operation Conditions
Weatherproof Rating
DVR Requirements
Frequently Asked Questions
This TIGERSECU camera works with HD-TVI, AHD, CVI, and CVBS 960H D1 analog DVRs. Use the nifty switch to easily change the camera’s mode to match your DVR. Contact TIGERSECU at [email protected] with your DVR’s brand and model, and we can find out whether it’ll work.
We recommend using a 12V 1A power supply to power up each camera. The power interface is DC 5.5 x2.1 mm. Insufficient power can result in distorted or blacked-out images, or video loss.
This is a hard-wired camera that can be connected it to your DVR using a BNC video cable. Contact TIGERSECU at [email protected] if you need a hand with installation.
A black-and-white image can appear on CVI DVRs. Correct the image color by switching the camera to CVI video mode (be sure to press the camera’s OSD switch towards CVI-mode for 5 seconds). Contact TIGERSECU’s Help Desk if you need a hand.
The OSD switch is a toggle switch on the camera that allows you to easily switch the camera’s video mode so it can work with a variety of DVRs, including HD-TVI, AHD, CVI, and even older 960H D1 analog DVRs.
