The Super HD 1080P Wide-Angle Dome Security Camera delivers clear 1920 × 1080 (2MP) video for upgrading or expanding a compatible wired surveillance system. Its versatile 4-in-1 design supports HD-TVI, AHD, CVI, and CVBS video formats, while the built-in OSD switch makes it easy to select the appropriate video mode for your compatible DVR.
A built-in 2.8mm wide-angle lens provides a 96° horizontal field of view, making it well suited for monitoring larger rooms, hallways, reception areas, warehouses, showrooms, garages, parking areas, and other spaces where wider coverage is preferred.

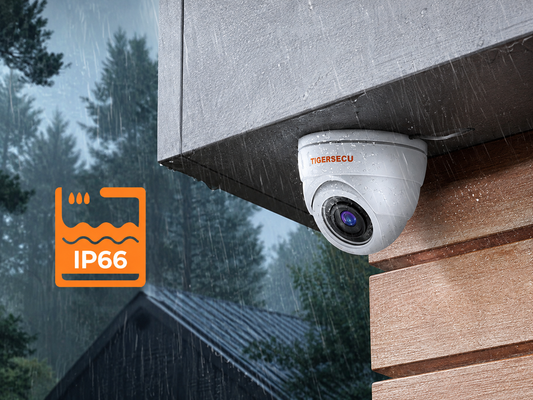

Designed for indoor and outdoor surveillance, the camera features a durable IP66 weather-resistant metal housing and infrared night vision up to 65 feet (20 meters) with IR-cut technology. The camera automatically displays color video during the day and switches to black-and-white night vision in low-light conditions.
The camera connects to a compatible DVR using a standard BNC coaxial video cable. It works with compatible 1080P and 5MP security DVRs, and for certain older 720P or D1 systems, the camera can be switched to CVBS mode at 944 × 480 resolution.
Package includes one wired 1080P dome security camera, three mounting screws, and a quick start guide. The camera requires a DC 12V 1A power source with a 5.5 × 2.1 mm power interface. Power supply and coaxial video cable are sold separately.
DVR/NVR recorders include a two-year limitedwarranty. Hard drives, cameras, cables, remotecontrols, power supplies, and other accessoriesinclude a one-year limited warranty. Lifetime technical support is available.
Core Product Advantages
Crystal Clear HD 1080P
Clearly distinguish people, objects and actions with this HD 1080p camera capable of generating 1920 x 1080 pixels (2.0 megapixels) video.
Heavy-Duty and Weatherproof
TIGERSECU’s heavy-duty metal IP66 cameras can be mounted indoors and outdoors and are built tough to withstand rain, snow, and the elements.
Built-in 2.8mm Lens
See 96-degrees horizontally and clearly distinguish people at a distance of 15 feet with built-in 2.8mm lens. Ideal for rooms, hallways, parking.
See in the Dark
See in the dark up to 65 feet (20 meters) with powerful infrared night vision which automatically kicks in as night falls.
Tech Specs
Connection Type
Image Sensor
Resolution
Lens
Viewing
Viewing Distance
Video Format
OSD/UTC
Day/Night Mode
Power Source
Operation Conditions
Weatherproof Rating
DVR Requirements
Frequently Asked Questions
This TIGERSECU camera works with HD-TVI, AHD, CVI, and CVBS 960H D1 analog DVRs. Use the nifty switch to easily change the camera’s mode to match your DVR. Contact TIGERSECU at [email protected] with your DVR’s brand and model, and we can find out whether it’ll work.
A black-and-white image can appear on CVI DVRs. Correct the image color by switching the camera to CVI video mode (be sure to press the camera’s OSD switch towards CVI-mode for 5 seconds). Contact TIGERSECU’s Help Desk if you need a hand.
We recommend using a 12V 1A power supply to power up each camera. The power interface is DC 5.5 x2.1 mm. Insufficient power can result in distorted or blacked-out images, or video loss.
This is a hard-wired camera that can be connected it to your DVR using a BNC video cable. Contact TIGERSECU at [email protected] if you need a hand with installation.
The OSD switch is a toggle switch on the camera that allows you to easily switch the camera’s video mode so it can work with a variety of DVRs, including HD-TVI, AHD, CVI, and even older 960H D1 analog DVRs.
