The 5MP Ultra HD Wide-Angle Dome Security Camera delivers detailed 2560 × 1920 video when connected to a compatible 5MP DVR. Its versatile 4-in-1 design supports HD-TVI, AHD, CVI, and CVBS video formats, making it a practical choice for upgrading or expanding many existing wired surveillance systems. The built-in OSD switch allows you to select the appropriate video mode to match your compatible DVR.
A built-in 2.8mm wide-angle lens provides a 96° horizontal field of view for broader coverage, making the camera well suited for garages, parking areas, warehouses, showrooms, hallways, reception areas, and other spaces where a wider viewing angle is preferred.

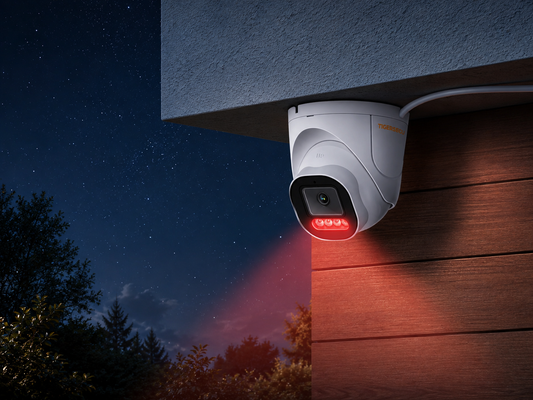

Designed for indoor and outdoor surveillance, the camera features an IP66 weather-resistant housing and infrared night vision up to 100 feet (30 meters). IR-cut technology and advanced infrared illumination help provide clearer, more evenly illuminated video in low-light and nighttime conditions.
The camera connects to a compatible DVR using a standard BNC coaxial video connection. When paired with a compatible 5MP DVR, it delivers full 5MP resolution. It can also work with certain compatible 1080P DVRs and older 720P or D1 systems by selecting the appropriate camera output mode.
Package includes one wired 5MP dome security camera, three mounting screws, and a quick start guide. The camera requires a DC 12V 1A power source. Power supply and coaxial video cable are sold separately.
DVR/NVR recorders include a two-year limitedwarranty. Hard drives, cameras, cables, remotecontrols, power supplies, and other accessoriesinclude a one-year limited warranty. Lifetime technical support is available.
Core Product Advantages
Adjustable neck, easy installation
Easily set up your camera with the adjustable neck that allows you to mount these cameras anywhere.
Advanced infrared night vision
See clearly up to 100 ft at night with infrared technology designed for even, reliable illumination.
Heavy-duty IP66 weatherproof
See vivid detail with HD video in almost any weather.
Hybrid 4-in-1 Camera Switch
Use this camera with a wide variety of security DVRs with the easy-to-use switch.
Frequently Asked Questions
Yes, this TIGERSECU security camera works with most recorders that support HD-TVI, HD-CVI, AHD, or CVBS (D1). Simply convert the camera mode to CVBS to make it compatible with older 720p or D1 DVR systems.
This is a hard-wired camera that can be connected to your security DVR using a BNC video cable. Contact TIGERSECU's Help Desk if you need a hand with installation.
No, this camera on its own does not work with a mobile app. This camera requires connection to a security DVR in order to work. Once connected to a DVR, you'll be able to view camera footage through the DVR’s mobile app for remote access.
The OSD switch is a toggle switch on the security camera that allows you to easily switch the camera’s video mode so it can work with a variety of DVRs, including HD-TVI, AHD, CVI, and even older 960H D1 analog DVRs.
The power supply for this camera is not included. We recommend using a 12V 1A power supply to power up each camera. The power interface is DC 5.5 x2.1 mm. Insufficient power can result in distorted or blacked-out images, or video loss.
The built-in OSD switch lets you select the camera’s video format. With the camera powered on, press and hold the switch in the direction marked TVI, AHD, CVI, or CVBS for approximately five seconds. Select a format and resolution supported by your DVR. Contact TIGERSECU Support before purchase if you are unsure.
Supports connections for up to nine compatible cameras when used with the included 1-to-9 splitter, provided the cameras’ combined power requirements do not exceed the adapter’s rated 5A / 8A output. For best stability, use a separate 12V1A power adapter for each camera where practical.
Fanless Heat-Sink Design — The fanless heat-sink design helps dissipate heat quietly during operation.
