About this item

This versatile TIGERSECU Super HD 1080P bullet-shape security camera features a 4-in-1 camera switch that allows you to use it with 4 different types of security DVRs including HD-TVI, AHD, CVI, and CVBS 960H D1 analog DVRs. Easily switch the camera mode to CVBS to enable it to work with older 720p or D1 DVR systems.
Clearly distinguish people, objects, and actions with this ultra high definition 1080p security camera capable of generating 1920 x 1080 pixels (2.0 megapixels) video.
Protect your loved ones and property with reliable wired connection, easy as installing traditional analog CCTV cameras and does not require a complex network infrastructure.
Mount these security cameras for indoor and outdoor use with sturdy IP66 weatherproof aluminum casing. See up to 100 ft/30 meters away at night with IR cut filters for powerful night vision.
This set includes one wired 1080p security camera, three screws and a quick start guide. Power supply and coaxial video cables are sold separately. TIGERSECU security cameras are backed by Lifetime Support and 1-year warranty provided by TIGERSECU. Defective products are replaced at no additional charge for US-customers within those timelines.

TIGERSECU. Protecting homes and businesses for over 20 years.

Versatile high-definition 1080p CCTV security cameras that feature a switch that allows it to be used with a variety of security DVRs including HD-TVI, AHD, CVI, and CVBS 960H D1 analog systems.

See every detail with Super HD 1080p

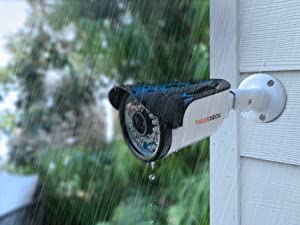

Heavy-Duty and Weatherproof

TIGERSECU’s heavy-duty metal IP66 cameras can be mounted indoors and outdoors and are built tough to withstand rain, snow, and the elements.

Crystal Clear HD 1080p

Clearly distinguish people, objects and actions with this HD 1080p camera capable of generating 1920 x 1080 pixels (2.0 megapixels) video.

Built-in 3.6mm Lens

See 60-degrees horizontally and 20-feet in the distance with built-in 3.6mm lens. Ideal for yards, driveways, parking lots and more.

See in the Dark

See in the dark up to 100 feet (30 meters) with powerful infrared night vision which automatically kicks in as night falls.

Compare TIGERSECU Security Cameras

1080P Bullet Camera

1080P Bullet 2-Pack

1080P Dome Camera

1080P Dome 2-Pack

Video Resolution	1080P Super HD	1080P Super HD	1080P Super HD	1080P Super HD
Hard Wired or Wireless	Hard wired	Hard wired	Hard wired	Hard wired
Compatible with these DVRs	HD-TVI, CVI, AHD and CVBS D1	HD-TVI, CVI, AHD and CVBS D1	HD-TVI, CVI, AHD and CVBS D1	HD-TVI, CVI, AHD and CVBS D1
Number of cameras	1	2	1	2
Includes power adapter	No	Yes	No	Yes
Camera shape	Bullet	Bullet	Dome	Dome
Lens	3.6mm	3.6mm	2.8mm	2.8mm
Field of view	60 degrees	60 degrees	72 degrees (wide angle)	72 degrees (wide angle)
Night vision	Up to 65-feet	Up to 65-feet	Up to 65-feet	Up to 65-feet
Weatherproof	IP66	IP66	IP66	IP66
Construction	Heavy-duty metal casing	Heavy-duty metal casing	Heavy-duty metal casing	Heavy-duty metal casing

Q: What kind of DVRs are compatible with this camera?

A: This TIGERSECU camera works with HD-TVI, AHD, CVI, and CVBS 960H D1 analog DVRs. Use the nifty switch to easily change the camera’s mode to match your DVR. Contact TIGERSECU with your DVR’s brand and model, and we can find out whether it’ll work.

Q: Why does my security camera display a black and white image during the day?

A: A black-and-white image can appear on CVI DVRs. Correct the image color by switching the camera to CVI video mode (be sure to press the camera’s OSD switch towards CVI-mode for 5 seconds). Contact TIGERSECU’s Help Desk if you need a hand.

Q: What kind of power supply works with this camera?

A: We recommend using a 12V 1A power supply to power up each camera. The power interface is DC 5.5 x2.1 mm. Insufficient power can result in distorted or blacked-out images, or video loss.

Q: Is this a wired or wireless camera?

A: This is a hard-wired camera that can be connected it to your DVR using a BNC video cable. Contact TIGERSECU’s Help Desk if you need a hand with installation.

Q: What’s an OSD switch and what does it do?

A: The OSD switch is a toggle switch on the camera that allows you to easily switch the camera’s video mode so it can work with a variety of DVRs, including HD-TVI, AHD, CVI, and even older 960H D1 analog DVRs.

Technical Details

Connection Type	BNC security cable
Image Sensor	1/3-inch SONY CMOS IMX322 with IR-Cut
Resolution	1920 x 1080 pixels (2 Megapixel)
Lens	Fixed 3.6mm lens, 24 pcs IR LEDs
Viewing Angle	60 degrees
Viewing Distance	20 feet
Video Format	TVI, AHD, CVI, CVBS 960H (Default 1080P TVI mode)
OSD/UTC	OSD controller
Day/Night Mode	Auto Switch (displays in color during the day, black-and-white at night)
Power Source	DC 12V 1A
Operation Conditions	-22℉ to 122℉, humidity 90% (non-condensing)
Weatherproof Rating	IP66
DVR Requirements	Works with 1080P and 5MP security DVRs

Reviews

Weight	1 lbs
Dimensions	8 × 4 × 4 in

TIGERSECU Super HD 1080P Hybrid 4-in-1 Security Camera with OSD Switch, for TVI/CVI/AHD/D1 DVR, Weatherproof for Indoor/Outdoor Use (Power Supply and Coaxial Cable Sold Separately)
